- Place of Origin:CN;SHN
- Type:Brake Discs
- Certification:ISO9001/TS16949
- Model Number:MB950958
- Brand Name:WINMANN
- OE NO.:MB950958
- Car Make:MITSUBISHI COLT/RODEO
- Material:HT250/GG20/G3000
- Size:Standard Size
- Height:39 mm
- Diameter:254 mm
- Centering Diameter:90 mm
- Pitch Circle Diameter:130 mm
- Brake Disc Thickness:23 mm
- Minimum Thickness:21 mm
- Number Of Holes:6
- Solid Or Vented:V
- Machining:High-carbon
- Location:Front Axle

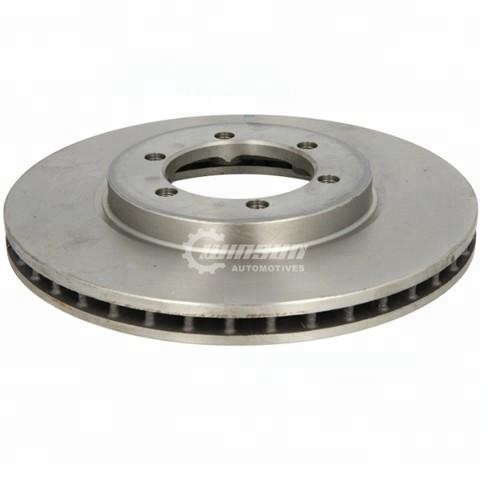

MB950958 Brake Disc Rotor For MITSUBISHI COLT/RODEO Parts
Product Description
What is our Material?
The Technical Index
Material Paragram of Auto Disc Brake, rotor & brake drum:
Standard | C | Si | Mn | P | S | C.E |
G3000 | 3.1~3.4 | 1.9~2.3 | 0.6~0.9 | ≤ 0.15 | ≤ 0.15 | 3.90~4.15 |
Mechanical Properties of Auto Disc Brake, rotor & brake drum:
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS
Microstructure of Auto Disc Brake, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
