- Product Name:brake drum for MITSUBISHI
- Material:Grey Cast Iron
- Certificates:ISO9001/TS16949
- Application:Commercial Vehicle
- MOQ:30 PCS
- Warranty:One Year/12 Months
- DELIVERY TIME:15~45days
- Sample:Yes
- Payment Terms:T/T 30% Deposit
- Quality:100% Professional Test
- Place of Origin:CN;SHN
- OE NO.:MB295429
- Car Fitment:for MITSUBISHI
- Reference NO.:MB295429
- Material:Grey Cast Iron
- Warranty:50000KM OR 1 YEAR
- Brand Name:WINMANN
- Certification:ISO9001
- Car Model:for MITSUBISHI
- Size:standard size

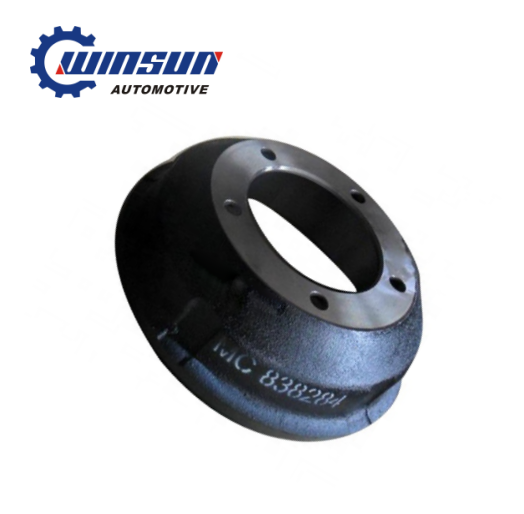

MB295429 MC838284 MC838283 MC838279 light truck brake drum for MITSUBISHI
Product Description
Specification

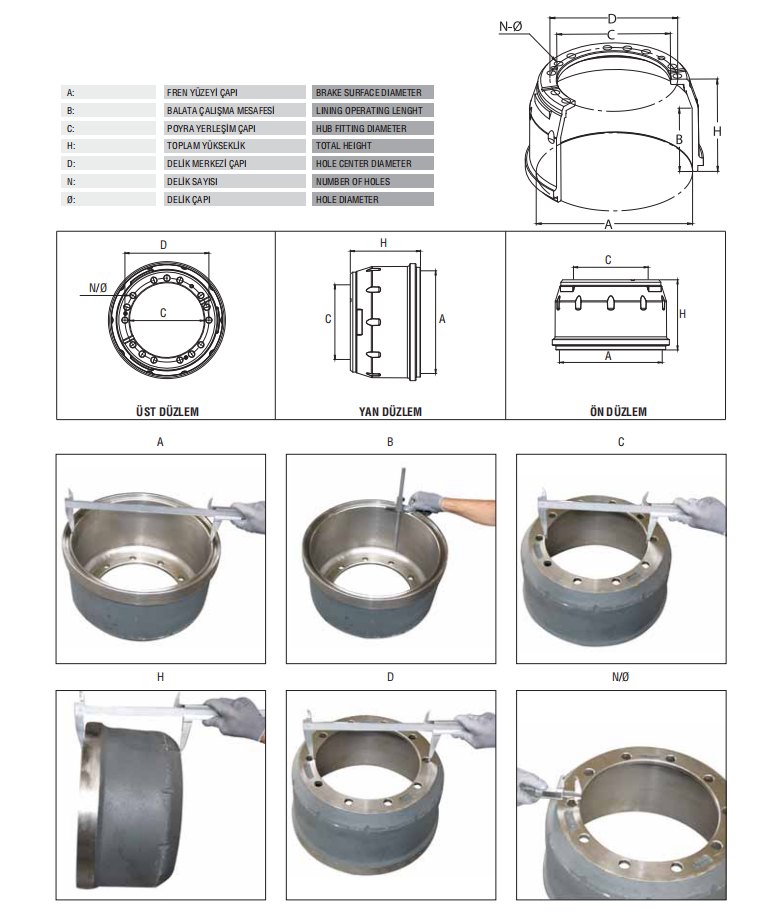

Technical Parameter :
A: Brake Surface Diameter B: Lining Operating Length C:Hub Fitting Diameter H: Total Height D: Hole Center Diameter
N/φ: Number Of Holes/ Holes Diameter
The material of all our brake disc, rotor and drum applies with standard G3000(America) = GG25(European) = HT250(China). meet all OE specifications for weight, configuration,and tolenrances delivering the best perfomance in the market.
Material Paragram of brake disc, rotor & brake drum:
Material | C | Si | Mn | P | S | C.E |
G3000 | 3.1~3.4 | 1.9~2.3 | 0.6~0.9 | ≤ 0.15 | ≤ 0.15 | 3.90~4.15 |
Mechanical Properties of brake disc, rotor & brake drum:
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS
Microstructure of brake disc, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS
Microstructure of brake disc, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
