WINSUN AUTOMOTIVE INDUSTRY (SHANGHAI) CO.,LTD.201204About UsShanghai,P.R.C.201204Winsun Automotive Industry Co.,Ltd. is a spirited company that has advanced market idea and various spare parts international trade experiences. Our company provides“one stop solution service” for various auto spare parts of commercial vehicle such as the truck(Mercedes Benz, Man, Volvo, Daf, Scania, Iveco And Renault.)、trailer(BPW, Fuwa, Fruehauf, York, Saf etc.),and engineering truck etc , These parts are made to exact specifications and under-go the same rigorous quality assurance tests as any other truck parts, the only difference being that we can offer them to you at a much lower price. we quickly react and keep improving, from inquiry, order, delivery an

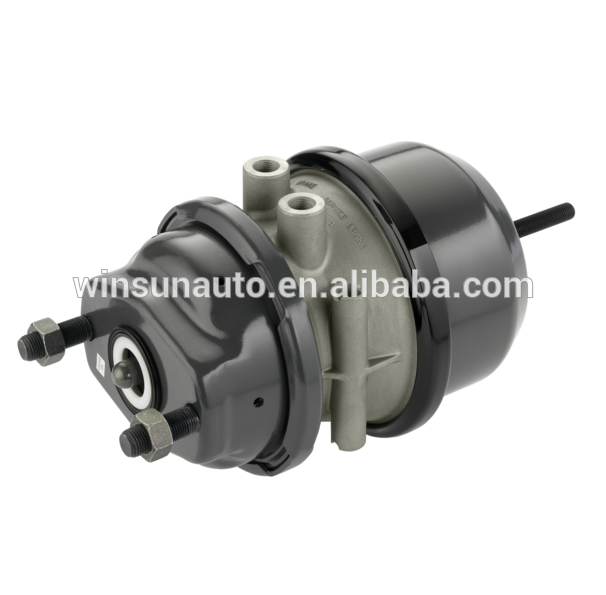

DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010
DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010
DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010
DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010
DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010

DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010

Model NO.
9253840010
Price:
USD 24.00-30.00 / pieces
Minimum order quantity
100 pieces
Supply Ability
100000.0 pieces / Month
Country of Origin
QINGDAO any port in china
Quantity:
  • Product Name:DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010
  • Material:Steel+AL
  • MOQ:200pcs
  • Type:CAM Type 24/24
  • Place of Origin:CN;SHG
  • Brand Name:WINMANN
  • Model Number:9253840010

BPW 200 New Model Brake Shoe 05.091.27.83.0



DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010
















FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF,

Q4. How about your delivery time?

A: Generally, it will take 25 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery




 Item Name



DOUBLE DIAPHRAGM SPRING BRAKE (DISC BRAKE) 16/24 9253840010

 Parameters



Bolt lengths33 mm
Bolt lengths33 mm
Bolt threads2 x M16 x 1.5
Clevis pins14 mm
Distance between bolts120.7 mm
Max. operating pressure8.0/8.0 bar
Output force 38700 N
Output force M8400 N
Port thread 11M22 x 1.5
Port thread 12M22 x 1.5
Port threadsM22 x 1.5
Push-rod length290 mm
Push-rod threadM14 x 1.5
Release pressure5.1 bar
Return-spring force250 N
Stroke57/67 mm
Temperature range-40°C to +80°C
Thread length40 mm
Total length260 mm
Type24/24
Type of operationCam
VersionWithout boot
YokeScrewed: 895 801 140 4
Calculated Volume (dm³)25.451
Size (mm x mm x mm)653 x 192 x 203
Weight (kg)9.062

Replaces
DAF1518146
EVOBUSA0074201218
MERCEDES-BENZA0074201218
MERCEDES-BENZ74201218
MERCEDES-BENZ64206818

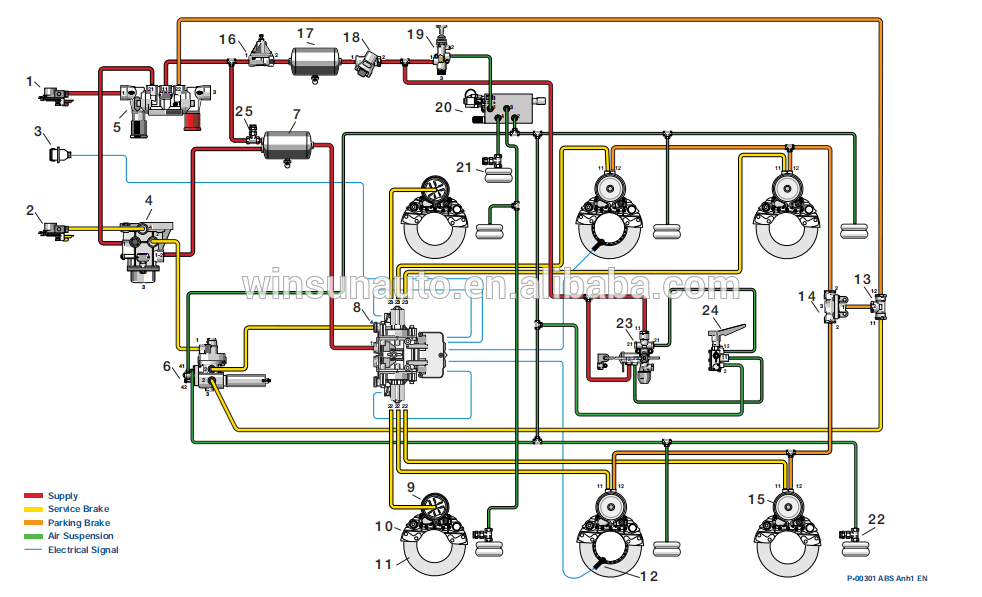

 trailer brake system.png
