11064624 11064824 For Volvo truck brake rotor disk Construction Machinery Brake Disc

11064624 11064824 For Volvo truck brake rotor disk Construction Machinery Brake Disc

Model NO.: 11064624
Price:: USD 30.00-30.00 / pieces
Minimum order quantity: 50 pieces
Supply Ability: 100000.0 pieces / Month
Country of Origin: Qingdao

Quantity:

Product Description

Product Name:Construction Machinery Brake Disc
Standard:HT250 GG25 G3000
Diameter:470 mm
Thickness:48 mm
Height:224 mm
Number Of Holes:20
Warranty:1 Year or 50000km
Sample:Yes
Package:Neutral Package
Delivery Time:15~45days
Place of Origin:CN;SHN
OE NO.:11064624 11064824
Car Fitment:For Volvo
Reference NO.:11064624 11064824
Material:Grey Cast Iron
Warranty:1 YEAR OR 50000 KM
Brand Name:WINMANN
Certification:ISO9001
Car Model:For Volvo
Size:470mm*48mm*224mm

Product Description

Specification

Technical Parameter :

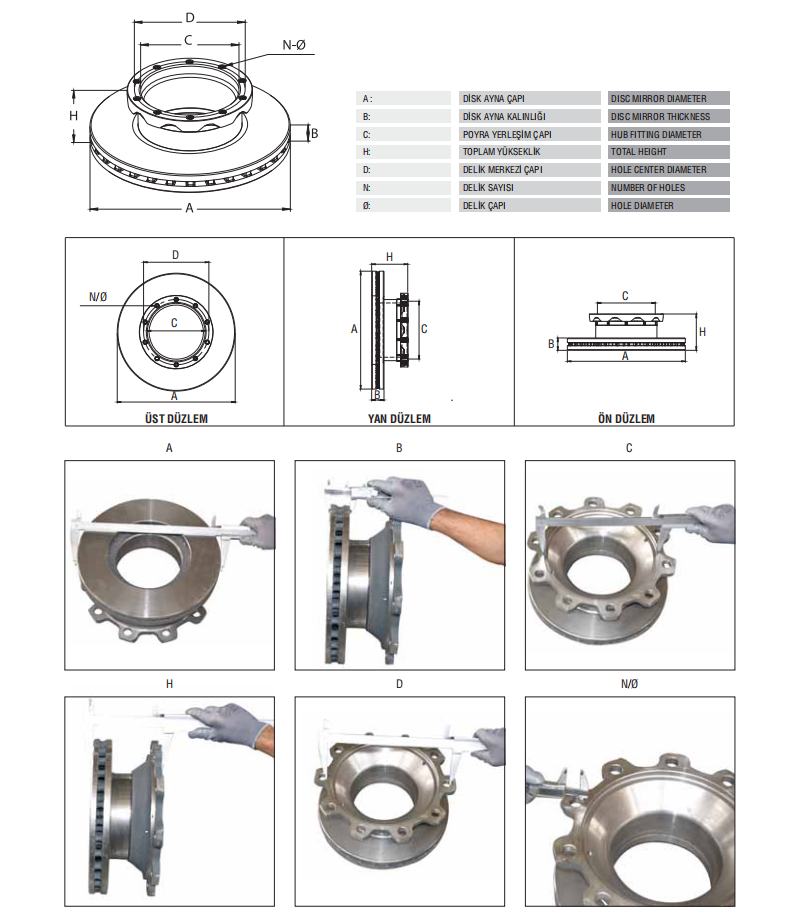

A: Diameter B: Brake Disc Thickness C:Centering Diameter H: Height D: Pitch Circle Diameter

N/φ: Number Of Holes/ Holes Diameter

The material of all our brake disc, rotor and drum applies with standard G3000(America) = GG25(European) = HT250(China). meet all OE specifications for weight, configuration,and tolenrances delivering the best perfomance in the market.

Material Paragram of brake disc, rotor & brake drum:

Material	C	Si	Mn	P	S	C.E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	≤ 0.15	≤ 0.15	3.90~4.15

Mechanical Properties of brake disc, rotor & brake drum:
1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS

Microstructure of brake disc, rotor & brake drum:
Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%
